Key Advantages and Features of Electric Wire Rope Hoists

Key Advantages and Features of Electric Wire Rope Hoists

#

Electric wire rope hoists are essential lifting devices widely used across industries, construction sites, warehouses, and manufacturing facilities. They are designed to provide reliable vertical lifting and movement of heavy loads, ensuring efficiency and safety in material handling operations.

As a leading manufacturer in Taiwan, Cheng Day offers a comprehensive range of electric wire rope hoists tailored to address diverse lifting challenges. Below, we explore the core features and benefits that set these hoists apart.

Product Range

#

Cheng Day provides several models of electric wire rope hoists to accommodate various requirements:

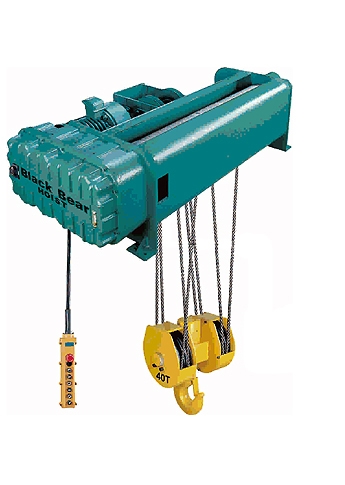

• Electric Wire Rope Hoist (AC brake)

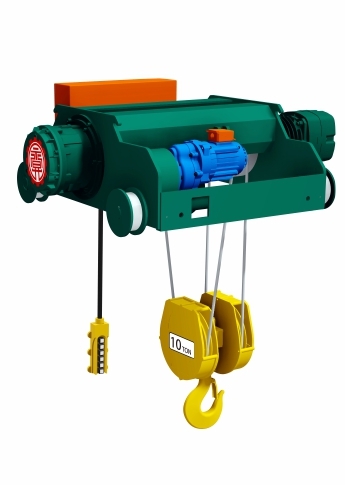

• Electric Wire Rope Hoist (DC brake)
• Electric Wire Rope Hoist (USA type)

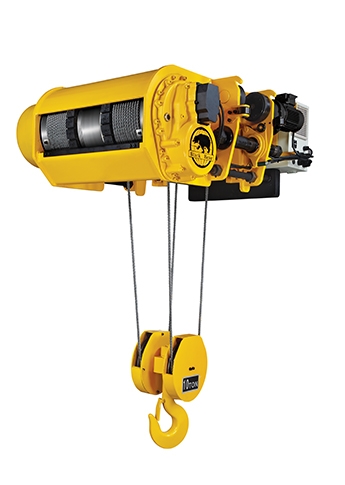

• Electric Wire Rope Hoist (PM series)

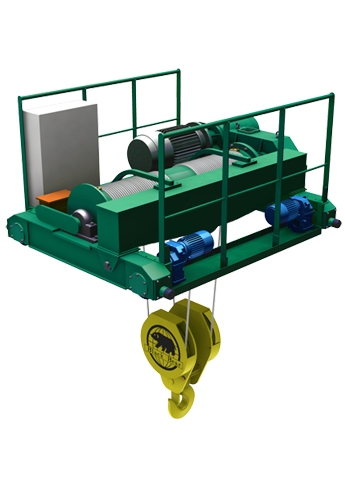

• Economy Wire Rope Crab

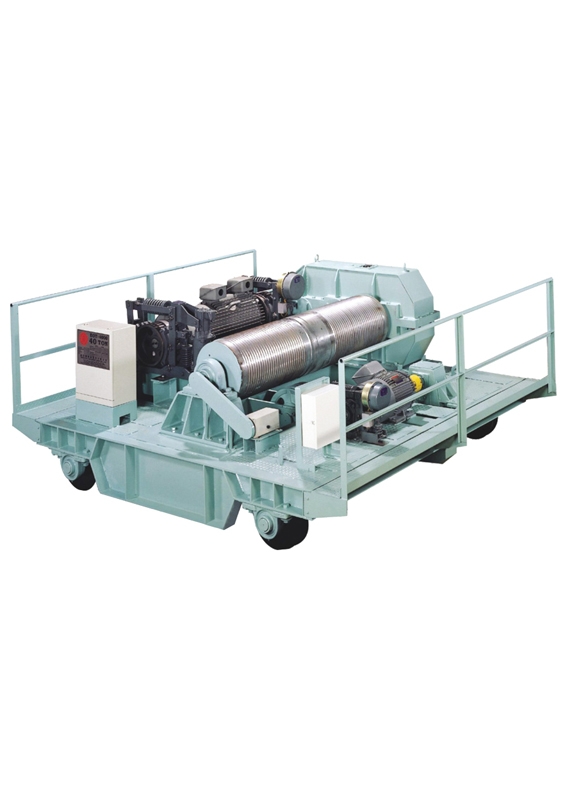

• Open Type Crab Trolley

AC Brake - Electric Wire Rope Hoist DC Brake - Electric Wire Rope Hoist USA Type - Electric Wire Rope Hoist PM Series - Electric Wire Rope Hoist Economy Wire Rope Crab Open Type Crab Trolley

Distinctive Features

#

1. Efficient Energy Absorption
   Cheng Day electric wire rope hoists utilize intermediate intensity wire ropes. While these ropes are larger in dimension compared to high-intensity alternatives, they excel at absorbing energy during repetitive load impacts. This characteristic extends the fatigue life of the equipment, contributing to long-term durability.

2. Reduced Maintenance Costs
   The larger contact area of the wire rope minimizes abrasion rates. Additionally, the wire ropes are easily sourced, further reducing maintenance expenses and downtime.

3. Enhanced Balance
   The drum design houses both reducers and electric motors on opposite sides, with a drive shaft running through the drum for transmission. This configuration ensures optimal balance during operation and effectively addresses potential balance issues.

4. Superior Impact Resistance
   The hoist frame is constructed using welded forming before processing, which provides greater impact resistance compared to traditional bolted joints.

5. Flexible Brake Options
   Two brake types are available—AC and DC—allowing users to select the solution that best fits their specific requirements and market preferences.

6. Adaptable Trolley Adjustment
   For hoists with smaller trolley gauges, the shaft for the traversing wheel can be adjusted according to height. This feature compensates for any camber variation between girders, ensuring all four wheels maintain consistent contact with the traversing rail.

7. Easy Component Procurement
   Primary electrical components are sourced from reputable brands, ensuring ease of procurement and replacement.

Applications

#

Electric wire rope hoists are indispensable in material handling and lifting operations, offering a controlled and reliable means of moving heavy objects safely and efficiently.

For further details or to discuss specific requirements, please contact Cheng Day .
